| สถานที่กำเนิด: | กวางตุ้งจีน |
|---|---|
| ชื่อแบรนด์: | OCSTAT / OEM |
| ได้รับการรับรอง: | FCC, ISO |
| หมายเลขรุ่น: | 3005 |
| จำนวนสั่งซื้อขั้นต่ำ: | 1ชิ้น/ต่อรองได้ |
| ราคา: | US$13.5~20 per piece,negotiable |
| รายละเอียดการบรรจุ: | หนึ่งชิ้นต่อกล่อง 40 กล่องต่อกล่อง |
| เวลาการส่งมอบ: | 7-60 วัน |
| เงื่อนไขการชำระเงิน: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| สามารถในการผลิต: | 150,000 ชิ้นต่อเดือน |
| วัสดุ: | เอบีเอส | สี: | สีขาว |
|---|---|---|---|
| เวที: | ขั้นตอนเดียว | พลัง: | 24V |
| พิมพ์: | เทอร์โมสตัท | ความแม่นยำ: | ± 1 ℃ |
| เซนเซอร์: | NTC | การใช้งาน: | ระบบ HAVC |
| เน้น: | 24V digital programmable thermostat,single stage HVAC thermostat,LCD weekly thermostat for air conditioner |
||

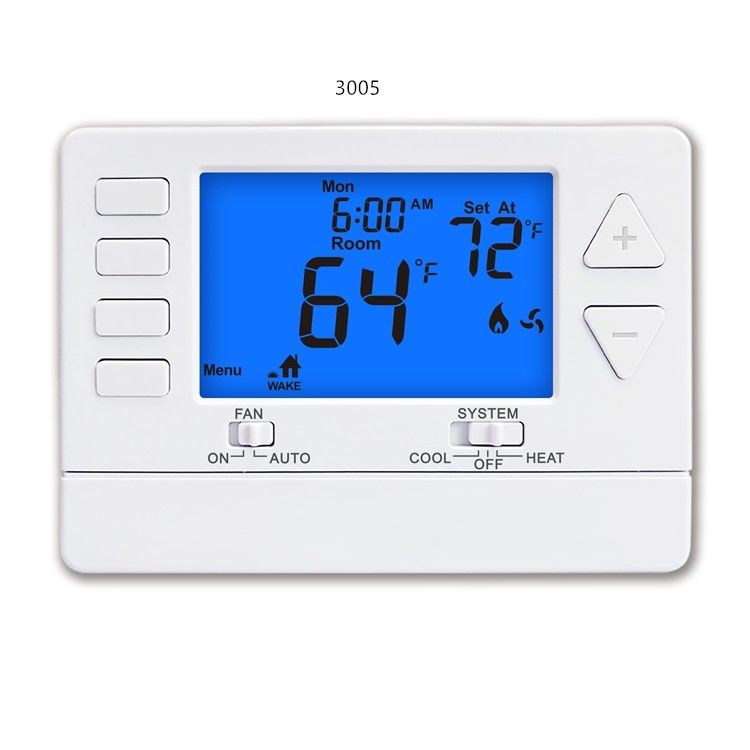

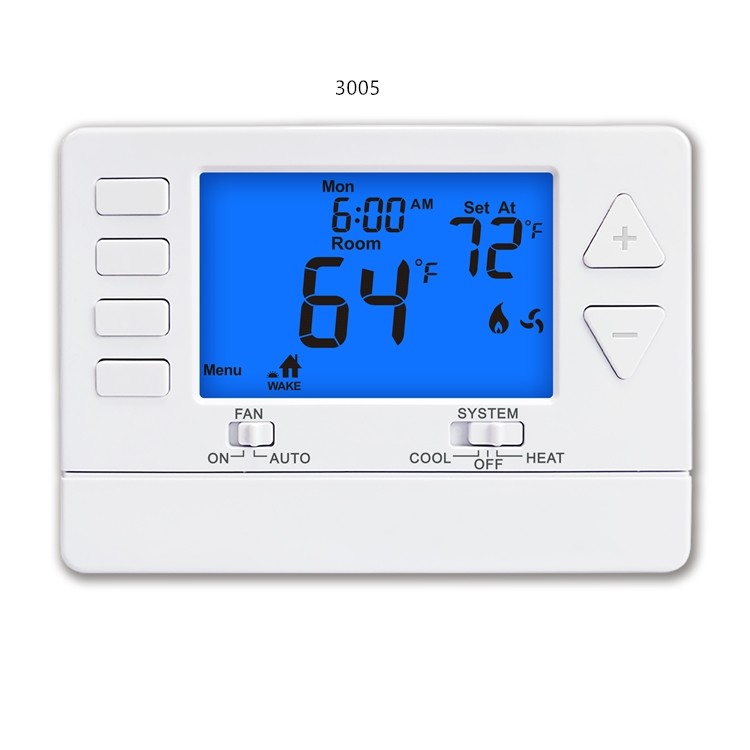

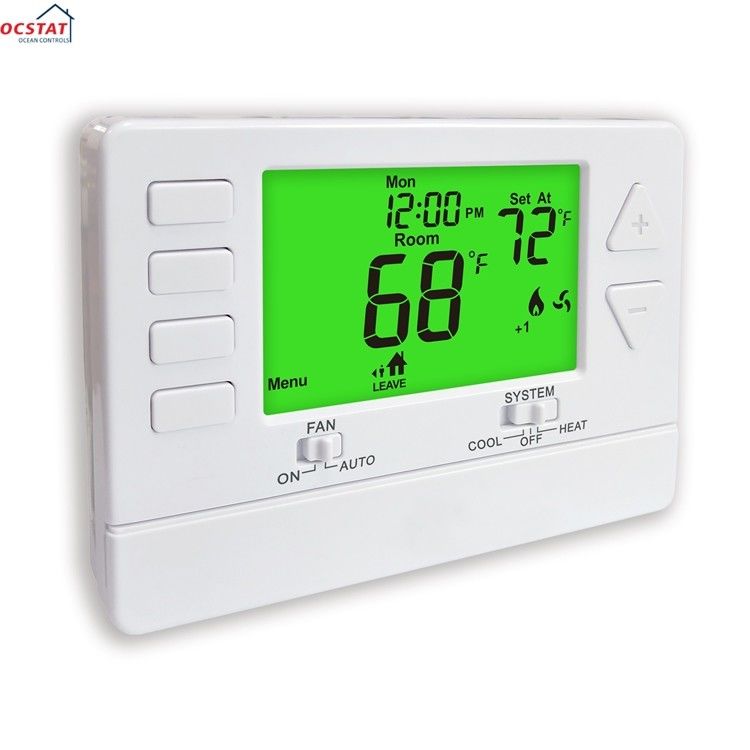

This is a 24V White ABS NTC Programmable Single Stage Digital Heating Room Thermostat, which is apply for various heating and cooling equipment.
Specifications:
| Model No.: STN3005 |
| Programmability: 5/1/1 Programmable |
|
Temperature Range (˚F): 32˚F-99˚F (1°C-40°C) |
|
Control Temp.Range (˚F): 44˚F-90˚F (7°C-32°C) |
|
Temp.Meas.Accuracy: ±1°C (at 20°C) |
| Power Source: DC 2 x AA 1.5V Alkaline batteries |
| 24VAC (18~30VAC), 50/60 Hz for hardwire (common wire) |
Features:
| 1 Heat / 1 Cool |
| 5/1/1 programmable |
| Batteries or 24V power |
| Large, easy to read clear LCD display |
| Various backlight color optional |
| Easy menu driven programming |
| Intuitive wake, leave, return, sleep programming icons |
| Electric or Gas configurable |
| Separate B & O terminals |
| Separate heating and cooling swing (cycle rate) adjustments |
| Room temperature calibration adjustable |
| 5 minute compressor delay protection (selectable on or off) |
| Contemporary design |
| Factory pre-set programme |
Why Us?
● ±0.1 high accuracy
● Apply with various heating and cooling equipment
● 10-years lifetime
● Free opening mould and develop software
● 24 hour delivery, adequate stock for more than 10 models
● Urgent orders accepted
About OEM/ODM optional:

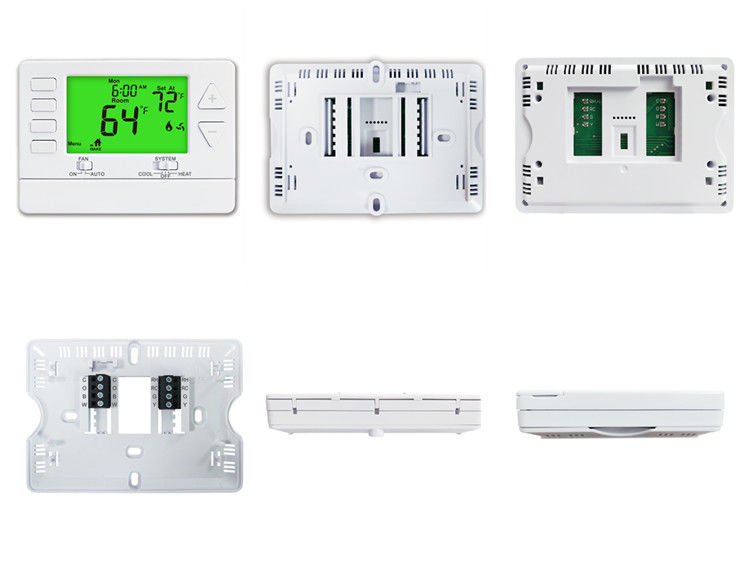

Images:
Company Information:
Ocean Controls Limited, is based on a former with 15 years experience in designing/manufacturing top-end electronic room thermostat. We can develop new items according to buyer's requirements. We welcome ODM and OEM Business Cooperation. Our products have high quality, fashionable styles and reasonable prices. All the production of crystal through the CE, RoHs, FCC and ISO certification. They are well accepted in domestic market and have been exported to the United States, Britain, Germany, Spain. Switzerland and so on.
FAQ:
1. Can I have a sample order for these wired thermostats?
Yes, we welcome sample order to test and check quality. You can choose different models to make a mixed order.
2. Do you have any MOQ limit?
MOQ are about 500 pcs per model. If need OEM service including logo printing, packing box and manual customized, the MOQ are 1000 pcs per model.
3. What about the lead time?
Sample needs 3-5 days, mass production time needs 6-8 weeks
4. Can I customize products?
Yes, let me know the specific customization requirements and I will get back to you as soon as possible.
5. Do you offer guarantee for the products?
Yes, we provide 1 year warranty.
